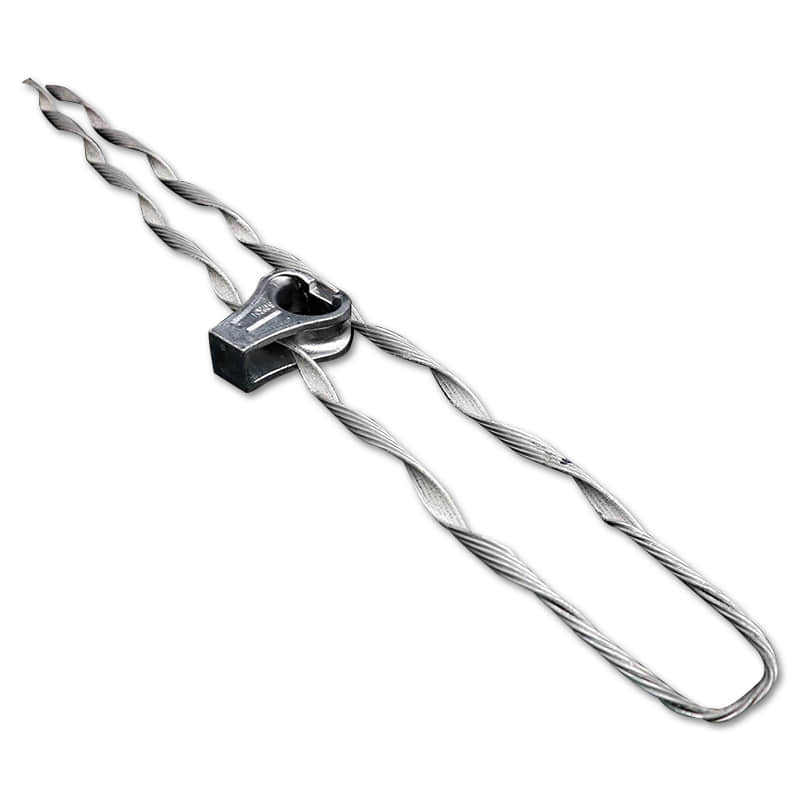

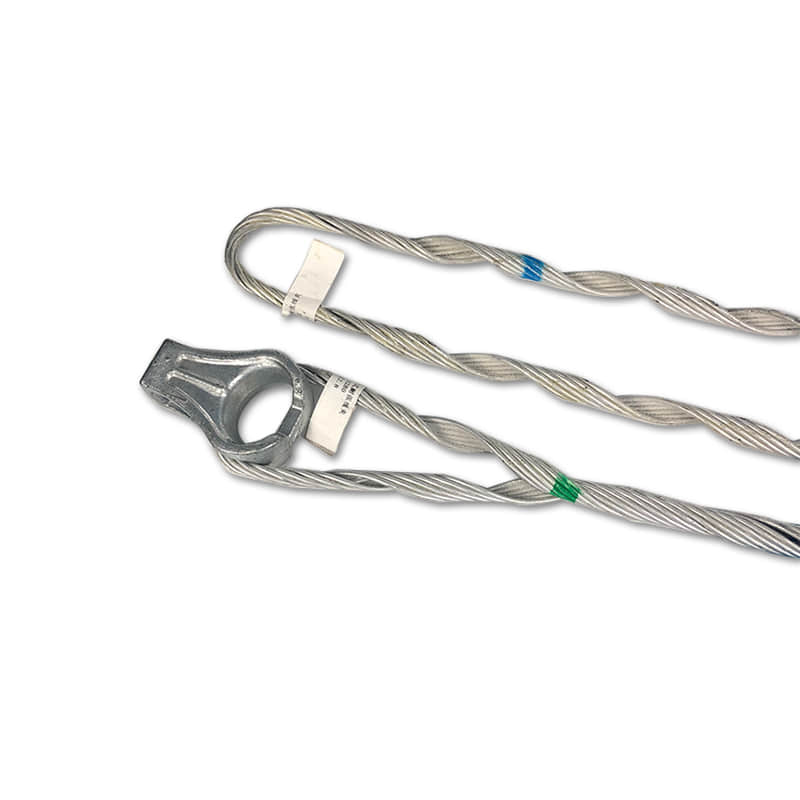

ADSS Formed Wire Deadend, Medium Tension, 1.211-1.289

The Medium Tension ADSS Formed Wire Deadend with armor rods is designed to securely but safely terminate

all ADSS (All Dielectric Self-Supporting) aerial fiber optic cables with spans ranging from 600 to 900 feet.

 MATERIAL

 • Galvanized Steel

 BENEFITS

 • Armor rods included for increased strength

• Easily applied by hand without tools

 • Can be kitted with accessories*

 INTENDED USE SPECIFICATIONS

 • Deadending of 0.452-1.288” (11.9-32.7 mm) ADSS cables

 • Spans ranging from 600-900’ (183-274 m)

 • For “standard” ADSS jackets

 TENSION

 • Moderate tension applications, approximately:

 » 2000# (8.9 kN) maximum initial (stringing/nominal axial/long-term) tension

 » 4000# (17.8 kN) maximum loaded (working/loaded axial/short-term) tension
